Bakelite bonded grinding wheels

BAKELITE BONDED GRINDING WHEELS

BAKELITE BONDED GRINDING WHEELS - are recommended for the following operation :

  • polishing
  • deburring
  • grinding
  • sharpening
  • floor grinding

I.BAKELITE BONDED GRINDING WHEELS FOR POLISHING OF WELDING BELTS AND CASTING FAULTS

This type of grinding wheels are used on fixed and swing- frame grinding maschines, electric and pneumatic hand held maschines.There are intended for precision and rough grinding on various materials such as hard and soft steel, cast iron, aluminium, bronze, brass, concrete, stone, terrazzo, ceramics.

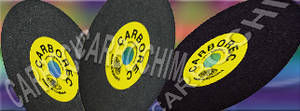

Bakelite bonded grinding wheels for polishing of welding belts and casting faults

Bakelite grinding wheels recommended for polishing are:

- bakelite grinding wheels for welding belts and casting faults polishing –type 1 (straight wheel).

II. BAKELITE BONDED GRINDING WHEELS FOR STEEL DEBURRING


Due to the fact that this types of grinding wheels are reinforced we recommend to be used at higher peripherical speeds (45m/s).

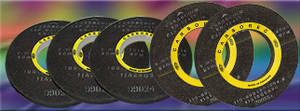

Bakelite bonded grinding wheels for steel deburring

Bakelite bonded grinding wheels recommended for deburring are:

- bakelite bonded grinding wheels for steel pieces deburring –type 109 (straight wheels reinforced with one steel ring). - bakelite bonded grinding wheels for steel pieces deburring –type 110 (straight wheels reinforced with two steel rings)

III. BAKELITE BONDED GRINDING WHEELS- FOR GRINDING OPERATIONS:

Generally bakelite bonded grinding wheels can be used in surface grinding operations and in both face grinding on deplex grinding maschines also.

III.1.BAKELITE BONDED GRINDING WHEELS  FOR SURFACE GRINDING

Straight or inclined surfaces working is performed with surface grinding maschine which make use of backelite bonded grinding wheels- segment type.

Bakelite bonded grinding wheels- for grinding operations:

- bakelite bonded grinding wheels for surface grinding –type segment- type 31Seg A (rectangular segment). - bakelite bonded grinding wheels for surface grinding –type segment- type 31Seg B (trapezoidal segment).

III.2. BAKELITE BONDED GRINDING WHEELS - FOR BOTH FACES GRINDING

These types of wheels are nut inserted grinding wheels used to grind the both faces on duplex grinding maschines, especially simultaneousely grinding of two flat faces at very high production rates.There are frequently used in automotive, in aerospace, in foundry and tool industry.

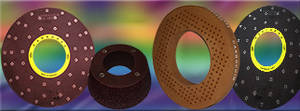

Bakelite bonded grinding wheels for both faces grinding:

- bakelite bonded grinding wheels for both faces grinding – type 36T (cylindrical plane nut inserted wheels). - bakelite bonded grinding wheels for both faces grinding – type 36P (cylindrical plane nut inserted wheels with cooling holes) - bakelite bonded grinding wheels for both faces grinding – type 37S (cylindrical ring nut inserted wheels). - bakelite bonded grinding wheels for both faces grinding – type 6ST (cup nut inserted wheels)

IV. BAKELITE BONDED GRINDING WHEELS - FOR SHARPENING OPERATIONS:

An important matter in tools sharpening is how to maintain tool shape and dimensions and at the same time to obtain the best cutting angle. This need is achieved by a good cutting edges abrasive and an adequate shape holding bond.

Bakelite bonded grinding wheels - for sharpening operations:

- bakelite bonded grinding wheels for cutters sharpening – type 31Seg A (rectangular segment). - bakelite bonded grinding wheels for cutters sharpening – type 31Seg B (trapezoidal segment).

V. BAKELITE BONDED GRINDING WHEELS FOR FLOOR GRINDING:

Unique cutting surface of the wheels provides smooth grinding of required surface profile without any undesired ‘cuts’ into material being ground. They may be used on portable vertical spindle grinders, electrically or pneumatically driven angle grinders, carriage grinders and grinding units.

Bakelite bonded grinding wheels for floor grinding:

- bakelite bonded grinding wheels for floor grinding – type 11BT1 (taper cup wheels) - bakelite bonded grinding wheels for floor grinding – type 37S8 (4 nuts inserted cylindrical ring wheels)
